THH0C4SE02 - Dust tight, waterproof, IP66, 4 channels, extended ambient temperature, serial outputs
Programmable temperature monitoring and acquisition device
Dust-Tight, waterproof, IP66

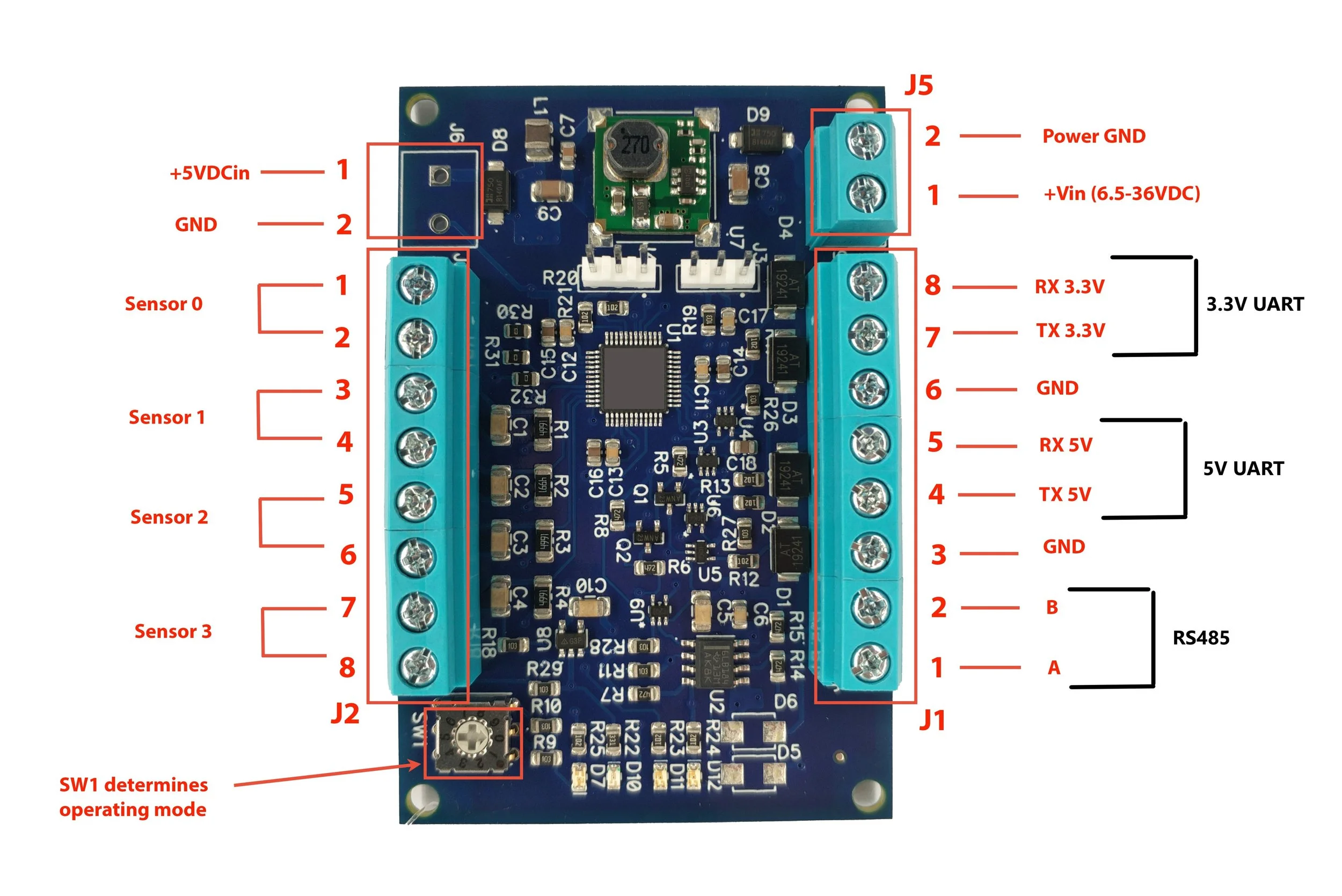

4- channel
RS-485,
5V, 3.3 UART
-35C to +80C operating ambient
-50C to +150C channels measurement range

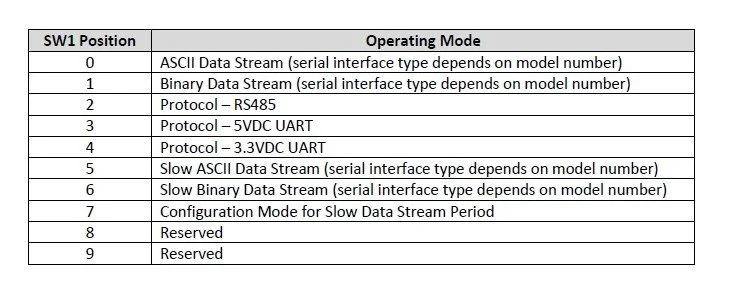

ASCII/binary data stream. Fast and slow data output. Fast 25ms, 50ms, 75ms, 100ms. Slow 1sec to 254 sec.
Modbus RTU Protocol

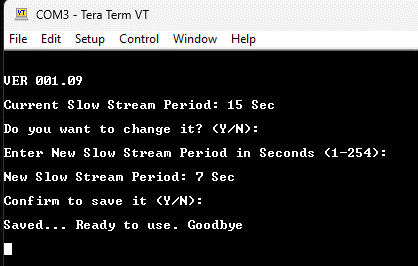

Programmable with user thermistor, power dissipation coefficients and slow data stream period 1 to 254 seconds
Download link to Protocol spec and excel Protocol Communication Tool (access code is provided with the shipment)
Lead Time 5 weeks
